Standard Brackets
Bracket
Type 5700
Material AISI 304
Easy mounting
Type 5700 has an uncomplicated construction and is therefore very
easy to mount.
No maintenance
Type 5700 requires no maintenance.
Heavy-duty
Type 5700 has a robust design and is made of AISI 304. This type
of bracket is cast - not welded - making it very durable.

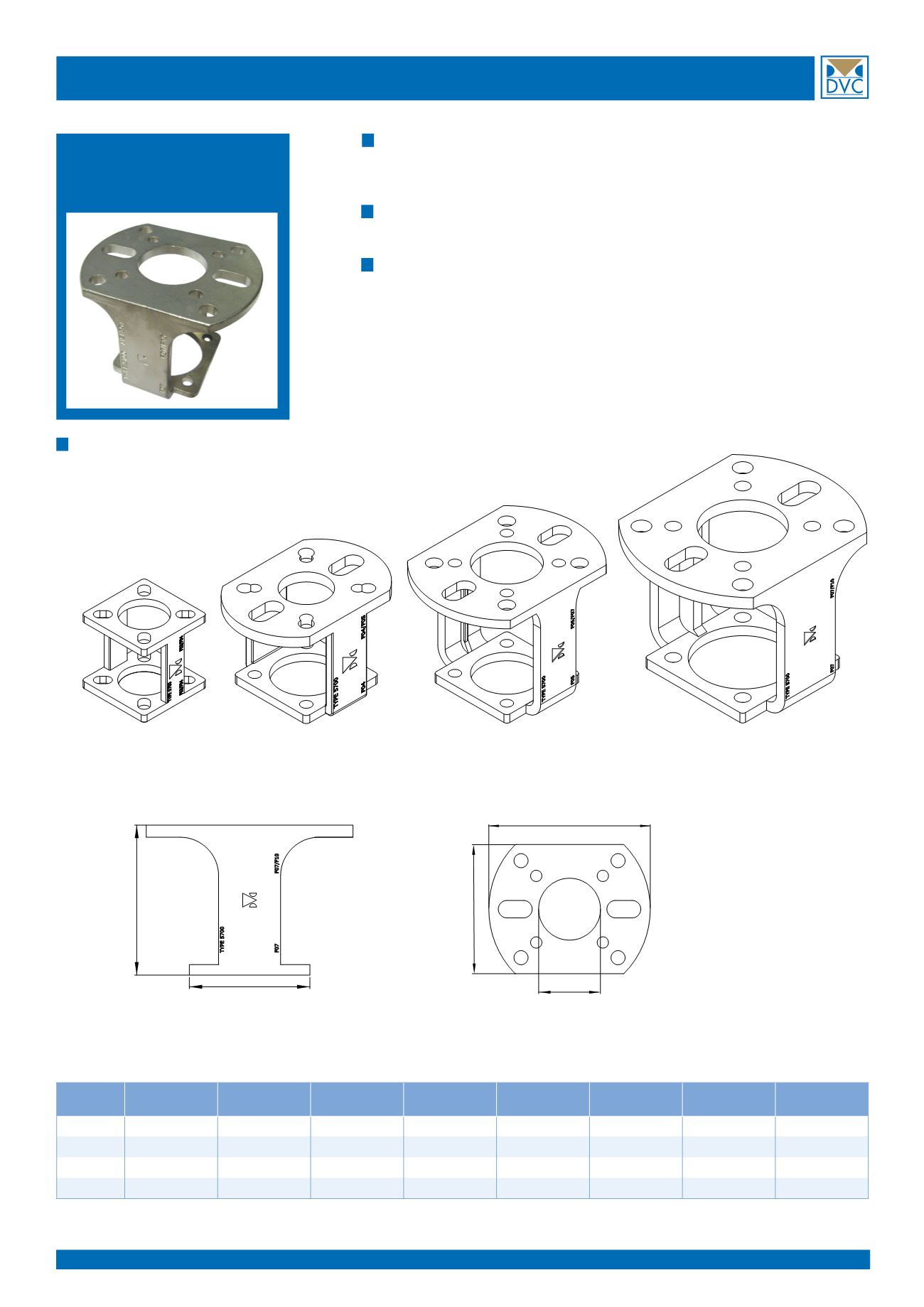

Dimensions
Size
[mm]
A
B
C
D
E
F
Top
ISO 5211
Bottom
ISO 5211
1
42
42
42
42
Ø 25
Ø 25
F03 / F04
F03/F04
2
47
42
74
50
Ø 23
Ø 30
F04 / F05
F04
3
70
50
95
70
Ø 35
Ø 35
F05 / F07
F05
4
87
70
120
96
Ø 46
Ø 55
F07 / F10
F07
A
B
C
E
D
